性能規范 Technical Data
|
公稱壓力 Nominal Pressure(MPa) |
公稱通徑 Nominal Diameter(am) |
適用介質 Applicable Medium |
|
0.6 |
15～125 |
海水、淡水、滑油、燃油和 t≤250℃蒸汽 Sea water, Fresh water, Lubricanting oil, Fuel oil, t≤250℃ steam. |
|
1.0 |
65～125 |
|
1.6 |
65～125 |
|
2.5 |
15～100 |
主要零部件材質 Materials of Main Parts
|
零件名稱 Parts Name |
材料 Material |
|
名稱 Name |
牌號 Marks |
|
閥體、閥蓋、閥盤 Body/Cover/Disc |
鑄錫青銅 Cast Tin Bronze |
ZCuSn10Zn2, ZCuSn5Pb5Zn5 |

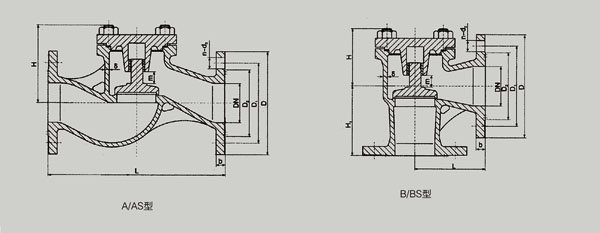

PN1.0、1.6、2.5MPa的A型、B型基本尺寸 Dimensions
| 公稱 壓力 PN (MPa) |
公稱 通徑 DN (mm) |
結構尺寸
Structure Dimension |
壁厚 Thickness |
法蘭 Flange |
螺栓 Bolt |
升程 Lift Range
m |
參考重量 Weight(kg) |
| L |
H≈ |
H1 |
| A型 |
B型 |
A型 |
B型 |
B型 |
D |
D1 |
D2 |
d0 |
b |
n個 |
Th |
A型 |
B型 |
| 1.0 |
65 |
290 |
115 |
123 |
94 |
115 |
6 |
155 |
123 |
104 |
15 |
14 |
6 |
M14 |
19 |
12.2 |
11.3 |
| 80 |
310 |
125 |
139 |
104 |
125 |
6 |
170 |
138 |
118 |
15 |
14 |
8 |
M14 |
23 |
16.4 |
14.3 |
| 100 |
350 |
150 |
160 |
117 |
135 |
6 |
190 |
158 |
138 |
15 |
14 |
8 |
M14 |
28 |
24.6 |
22.7 |
| 125 |
400 |
175 |
185 |
129 |
155 |
7 |
215 |
183 |
164 |
15 |
14 |
10 |
M14 |
35 |
37.0 |
30.4 |
| 1.6 |
125 |
400 |
175 |
197 |
143 |
155 |
7 |
225 |
187 |
168 |
17 |
17 |
10 |
M16 |
35 |
45.8 |
40.0 |
| 2.5 |
20 |
150 |
75 |
79 |
66 |
75 |
5 |
95 |
68 |
48 |
13 |
12 |
4 |
M12 |
6 |
3.6 |
3.5 |
| 25 |
160 |
80 |
80 |
67 |
80 |
5 |
105 |
73 |
56 |
13 |
13 |
4 |
M12 |
7 |
4.3 |
4.1 |
| 32 |
180 |
85 |
85 |
68 |
85 |
5 |
115 |
83 |
64 |
15 |
13 |
6 |
M14 |
9 |
5.0 |
4.8 |
| 40 |
200 |
90 |
88 |
76 |
90 |
5 |
125 |
93 |
74 |
15 |
14 |
6 |
M14 |
12 |
6.3 |
6.0 |
| 50 |
230 |
95 |
109 |
85 |
95 |
6 |
135 |
103 |
84 |
15 |
14 |
6 |
M14 |
15 |
8.6 |
8.2 |
| 65 |
290 |
115 |
123 |
94 |
115 |
7 |
170 |
132 |
110 |
17 |
17 |
8 |
M16 |
19 |
13.5 |
11.5 |
| 80 |
310 |
125 |
150 |
110 |
125 |
8 |
185 |
147 |
126 |
17 |
19 |
8 |
M16 |
23 |
19.8 |
17.3 |
| 100 |
350 |
150 |
155 |
118 |
135 |
8 |
205 |
167 |
146 |
17 |
19 |
10 |
M16 |
28 |
30.5 |
25.7 |
PN0.6、1.6、2.5MPa的AS型、BS型基本尺寸 Dimensions
|
公稱
壓力 PN (MPa) |
公稱
通徑 DN (mm) |
結構尺寸 Structure Dimension |
壁厚 Thickness |
法蘭 Flange |
螺栓 Bolt |
升程 Lift Range m |
參考重量 Weight(kg) |
| L |
H≈ |
H1 |
| AS型 |
BS型 |
AS型 |
BS型 |
BS型 |
D |
D1 |
D2 |
d0 |
b |
n個 |
Th |
AS型 |
BS型 |
| 0.6 |
15 |
130 |
90 |
84 |
70 |
90 |
4 |
80 |
55 |
40 |
11 |
12 |
4 |
M10 |
7 |
3.0 |
3.2 |
| 20 |
150 |
95 |
84 |
70 |
95 |
4 |
95 |
65 |
50 |
11 |
12 |
4 |
M10 |
7 |
3.4 |
3.6 |
| 25 |
160 |
100 |
84 |
70 |
100 |
4 |
100 |
75 |
60 |
11 |
14 |
4 |
M10 |
7 |
3.8 |
4.0 |
| 32 |
180 |
105 |
90 |
70 |
105 |
5 |
120 |
90 |
70 |
14 |
15 |
4 |
M12 |
9 |
5.6 |
5.4 |
| 40 |
200 |
115 |
101 |
77 |
115 |
5 |
130 |
100 |
80 |
14 |
16 |
4 |
M12 |
12 |
7.1 |
6.8 |
| 50 |
230 |
125 |
110 |
80 |
125 |
5 |
140 |
110 |
90 |
14 |
17 |
4 |
M12 |
15 |
8.3 |
9.2 |
| 65 |
290 |
145 |
122 |
89 |
145 |
6 |
160 |
130 |
110 |
14 |
17 |
4 |
M12 |
19 |
16.4 |
12.2 |
| 80 |
310 |
155 |
153 |
112 |
155 |
6 |
190 |
150 |
128 |
18 |
19 |
4 |
M16 |
23 |
18.3 |
17.7 |
| 100 |
350 |
175 |
162 |
113 |
175 |
6 |
210 |
170 |
148 |
18 |
20 |
4 |
M16 |
28 |
28.0 |
23.8 |
| 125 |
400 |
200 |
182 |
123 |
200 |
7 |
240 |
200 |
178 |
18 |
20 |
8 |
M16 |
35 |
34.0 |
31.9 |
| 1.6 |
65 |
290 |
145 |
136 |
97 |
145 |
6 |
185 |
145 |
122 |
18 |
17 |
4 |
M16 |
19 |
15.6 |
14.4 |
| 80 |
310 |
155 |
158 |
117 |
155 |
6 |
200 |
160 |
133 |
18 |
19 |
4 |
M16 |
23 |
22.0 |
20.8 |
| 100 |
350 |
175 |
170 |
121 |
175 |
6 |
220 |
180 |
158 |
18 |
20 |
8 |
M16 |
28 |
36.5 |
31.3 |
| 125 |
400 |
200 |
185 |
129 |
200 |
7 |
250 |
210 |
184 |
18 |
22 |
8 |
M16 |
35 |
43.0 |
37.2 |
| 2.5 |
15 |
130 |
90 |
84 |
70 |
90 |
5 |
95 |
65 |
47 |
14 |
12 |
4 |
M12 |
7 |
4.4 |
4.2 |
| 20 |
150 |
95 |
84 |
70 |
95 |
5 |
105 |
75 |
58 |
14 |
12 |
4 |
M12 |
7 |
4.8 |
4.6 |
| 25 |
160 |
100 |
84 |
70 |
100 |
5 |
115 |
85 |
68 |
18 |
14 |
4 |
M12 |
7 |
5.2 |
5.4 |
| 32 |
180 |
105 |
90 |
70 |
105 |
5 |
140 |
100 |
78 |
18 |
15 |
4 |
M16 |
9 |
7.3 |
7.1 |
| 40 |
200 |
115 |
101 |
77 |
115 |
5 |
150 |
110 |
88 |
18 |
16 |
4 |
M16 |
12 |
9.1 |
8.7 |
| 50 |
230 |
125 |
110 |
81 |
125 |
6 |
165 |
125 |
102 |
18 |
17 |
4 |
M16 |
15 |
10.9 |
10.7 |
| 65 |
290 |
145 |
136 |
97 |
145 |
7 |
185 |
145 |
122 |
18 |
17 |
8 |
M16 |
19 |
15.9 |
14.7 |
| 80 |
310 |
155 |
158 |
117 |
155 |
7 |
200 |
160 |
133 |
18 |
19 |
8 |
M16 |
23 |
22.2 |
21.1 |
| 100 |
350 |
175 |
170 |
121 |
175 |
8 |
235 |
190 |
158 |
22 |
20 |
8 |
M20 |
28 |
37.0 |
3.8 |
|
