| 性能規范Technical Data |
| 公稱壓力Nominal Pressure(MPa) |
公稱通徑Nominal Diameter(mm) |
適用介質Applicable Medium |
| 06 |
50 - 300 |
海水、淡水、滑油、燃油和f≤2200C蒸汽 |
| 10 |
65 - 250 |
Sea water. Fresh water. Lubricanting oil, Fuel oil, |
| 16 |
20 - 50 |
f≤2200C steam |
|
|
| 主要零部件材質Materials of Main Parts |
| 零件名稱Parts Name |
材料Material |
| |
名稱Name |
牌號Marks |
| 閥體、閥蓋Body/Cover |
灰鑄鐵Gray Cast lron |
HT200 |
| 閥盤Disc |
鑄錫青銅Cast Tin Bronze |
ZCuSn102n2 |
| 閥座Seat |
鑄鋁青銅Cast Aluminum Bronze |
ZCuA19Mn2 |
| 閥桿Stem |
鋁青銅Aluminum Bronze |
CuA19Mn2 | |

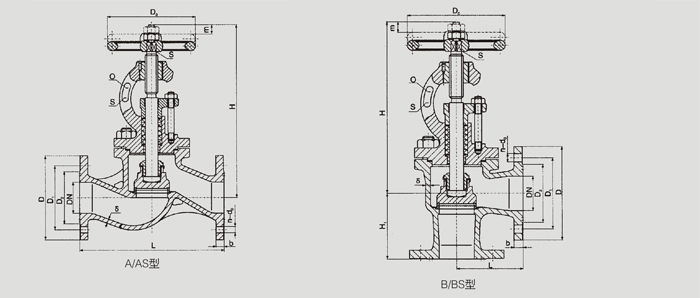

| PNl.O、1.6MPa的A型、B型基本尺寸Dimensions |
| 公稱 |
公稱 |
結構尺寸S |
ructure Dimension |
|
法蘭 |
螺栓 |
手輪 |
升程 |
參考重量 |
壓力
PN
|
通徑
DN
|
L
|
H≈
|
Hi
|
壁厚
Thickness
6 |
Flange
|
Bolt
|
Hand wheel
|
Lift
Range |
Weight(kg)
|
| (MPa) |
(mm) |
A型 |
B型 |
A型 |
B型 |
B型 |
|
D |
Di |
D2 |
do |
b |
n個 |
Th |
Do |
S |
m |
A型 |
B型 |
| |
65 |
290 |
115 |
310 |
277 |
1 15 |
9 |
155 |
123 |
104 |
15 |
15 |
6 |
M14 |
140 |
12 |
18 |
18.9 |
16.7 |
| |
80 |
310 |
125 |
345 |
304 |
125 |
9 |
170 |
138 |
118 |
15 |
15 |
8 |
M14 |
160 |
14 |
24 |
23.0 |
19.9 |
| 1.0 |
100 |
350 |
150 |
374 |
325 |
135 |
10 |
190 |
158 |
138 |
15 |
15 |
8 |
M14 |
180 |
14 |
35 |
31.0 |
27.2 |
| |
125 |
400 |
175 |
426 |
366 |
155 |
10 |
215 |
183 |
164 |
15 |
15 |
10 |
M14 |
200 |
17 |
44 |
39.3 |
37.5 |
| |
150 |
480 |
180 |
482 |
410 |
160 |
11 |
240 |
208 |
190 |
15 |
16 |
12 |
M14 |
200 |
17 |
57 |
55.5 |
48.4 |
| |
20 |
150 |
75 |
217 |
203 |
75 |
7 |
95 |
68 |
48 |
13 |
14 |
4 |
M12 |
80 |
8 |
7 |
5.7 |
5.1 |
| |
25 |
160 |
80 |
217 |
203 |
80 |
7 |
105 |
73 |
56 |
13 |
14 |
4 |
M12 |
80 |
8 |
7 |
6.0 |
5.6 |
| 1.6 |
32 |
180 |
85 |
236 |
216 |
85 |
7 |
1 15 |
83 |
64 |
15 |
15 |
6 |
M14 |
100 |
9 |
9 |
7.0 |
6.9 |
| |
40 |
200 |
90 |
260 |
236 |
90 |
8 |
125 |
93 |
74 |
15 |
16 |
6 |
M14 |
120 |
11 |
11 |
9.2 |
8.5 |
| |
50 |
230 |
95 |
288 |
258 |
95 |
8 |
135 |
103 |
84 |
15 |
16 |
6 |
M14 |
140 |
12 |
14 |
11.9 |
11.3 |
|
|
| PN0.6．1.0、1.6MPa的AS型、BS型基本尺寸Dimensions |
| 公稱 |
公稱 |
結構尺寸S |
ructure Dimension |
|
法蘭 |
螺栓 |
手輪 |
升程 |
參考重量 |
壓力
PN
|
通徑
DN
|
L
|
H≈
|
Hi
|
壁厚
Thickness
6 |
Flange
|
Bolt
|
Hand wheel
|
Lift
Range |
Weight(kg)
|
| (MPa) |
(mm) |
AS型 |
BS型 |
AS型 |
BS型 |
BS型 |
|
D |
Di |
D2 |
do |
b |
n個 |
Th |
Do |
S |
m |
AS型 |
BS型 |
| |
50 |
230 |
125 |
288 |
258 |
125 |
8 |
140 |
1 10 |
90 |
14 |
16 |
4 |
M12 |
140 |
12 |
14 |
12 2 |
12 2 |
| |
65 |
290 |
145 |
310 |
277 |
145 |
9 |
160 |
130 |
1 10 |
14 |
16 |
4 |
M12 |
140 |
12 |
18 |
19 2 |
17 7 |
| |
80 |
310 |
155 |
345 |
304 |
155 |
9 |
190 |
150 |
128 |
18 |
18 |
4 |
M16 |
160 |
14 |
24 |
23 8 |
21 7 |
| |
100 |
350 |
175 |
374 |
325 |
175 |
10 |
210 |
170 |
148 |
18 |
18 |
4 |
M16 |
180 |
14 |
35 |
34 5 |
32 3 |
0 6 |
125
|
400
|
200
|
426
|
366
|
200
|
10
|
240
|
200
|
178
|
18
|
20
|
8
|
M16
|
200
|
17
|
44
|
42 5
|
42 8
|
| |
150 |
480 |
225 |
482 |
410 |
225 |
11 |
265 |
225 |
202 |
18 |
20 |
8 |
M16 |
200 |
17 |
57 |
58 7 |
55 8 |
| |
175 |
540 |
225 |
557 |
489 |
225 |
11 |
295 |
255 |
232 |
18 |
22 |
8 |
M16 |
200 |
17 |
60 |
76 8 |
70 3 |
| |
200 |
600 |
275 |
621 |
549 |
275 |
11 |
320 |
280 |
258 |
18 |
22 |
8 |
M16 |
280 |
24 |
68 |
102 0 |
95 6 |
| |
250 |
730 |
325 |
721 |
623 |
325 |
13 |
375 |
335 |
312 |
18 |
24 |
12 |
M16 |
360 |
27 |
80 |
158 0 |
151 0 |
| |
300 |
850 |
375 |
794 |
691 |
375 |
13 |
440 |
395 |
365 |
22 |
24 |
12 |
M20 |
450 |
32 |
100 |
218 0 |
207 0 |
| |
65 |
290 |
145 |
310 |
277 |
145 |
9 |
185 |
145 |
122 |
18 |
20 |
4 |
M16 |
140 |
12 |
18 |
21 6 |
20 1 |
| |
80 |
310 |
155 |
345 |
304 |
155 |
9 |
200 |
160 |
133 |
18 |
22 |
8 |
M16 |
160 |
14 |
24 |
26 0 |
23 9 |
| |
100 |
350 |
175 |
374 |
325 |
175 |
10 |
220 |
180 |
158 |
18 |
24 |
8 |
M16 |
180 |
14 |
35 |
35 0 |
32 8 |
1 0 |
125
|
400
|
200
|
426
|
366
|
200
|
10
|
250
|
210
|
184
|
18
|
26
|
8
|
M16
|
200
|
17
|
44
|
44 3
|
44 6
|
| |
150 |
480 |
225 |
482 |
410 |
225 |
11 |
285 |
240 |
212 |
22 |
26 |
8 |
M20 |
200 |
17 |
57 |
62 7 |
59 8 |
| |
175 |
540 |
225 |
557 |
489 |
225 |
11 |
315 |
270 |
242 |
22 |
28 |
8 |
M20 |
280 |
24 |
60 |
80 3 |
73 8 |
| |
200 |
600 |
275 |
621 |
543 |
275 |
11 |
340 |
295 |
268 |
22 |
28 |
8 |
M20 |
360 |
27 |
68 |
106 0 |
99 6 |
| |
250 |
730 |
325 |
721 |
623 |
325 |
13 |
395 |
350 |
320 |
22 |
28 |
12 |
M20 |
450 |
32 |
80 |
160 0 |
153 0 |
| |
20 |
150 |
95 |
217 |
203 |
95 |
7 |
105 |
75 |
58 |
14 |
16 |
4 |
M12 |
80 |
8 |
7 |
6 2 |
5 7 |
| |
25 |
160 |
100 |
217 |
203 |
100 |
7 |
1 15 |
85 |
68 |
14 |
16 |
4 |
M12 |
80 |
8 |
7 |
6 6 |
6 4 |
| 1 6 |
32 |
180 |
105 |
236 |
216 |
105 |
7 |
140 |
100 |
78 |
18 |
18 |
4 |
M16 |
100 |
9 |
9 |
8 6 |
8 7 |
| |
40 |
200 |
115 |
260 |
236 |
1 15 |
8 |
150 |
1 10 |
88 |
18 |
18 |
4 |
M16 |
120 |
1 1 |
1 1 |
11 0 |
10 7 |
| |
50 |
230 |
125 |
288 |
258 |
125 |
8 |
165 |
125 |
102 |
18 |
20 |
4 |
M16 |
140 |
12 |
14 |
14 2 |
14 2 | |
